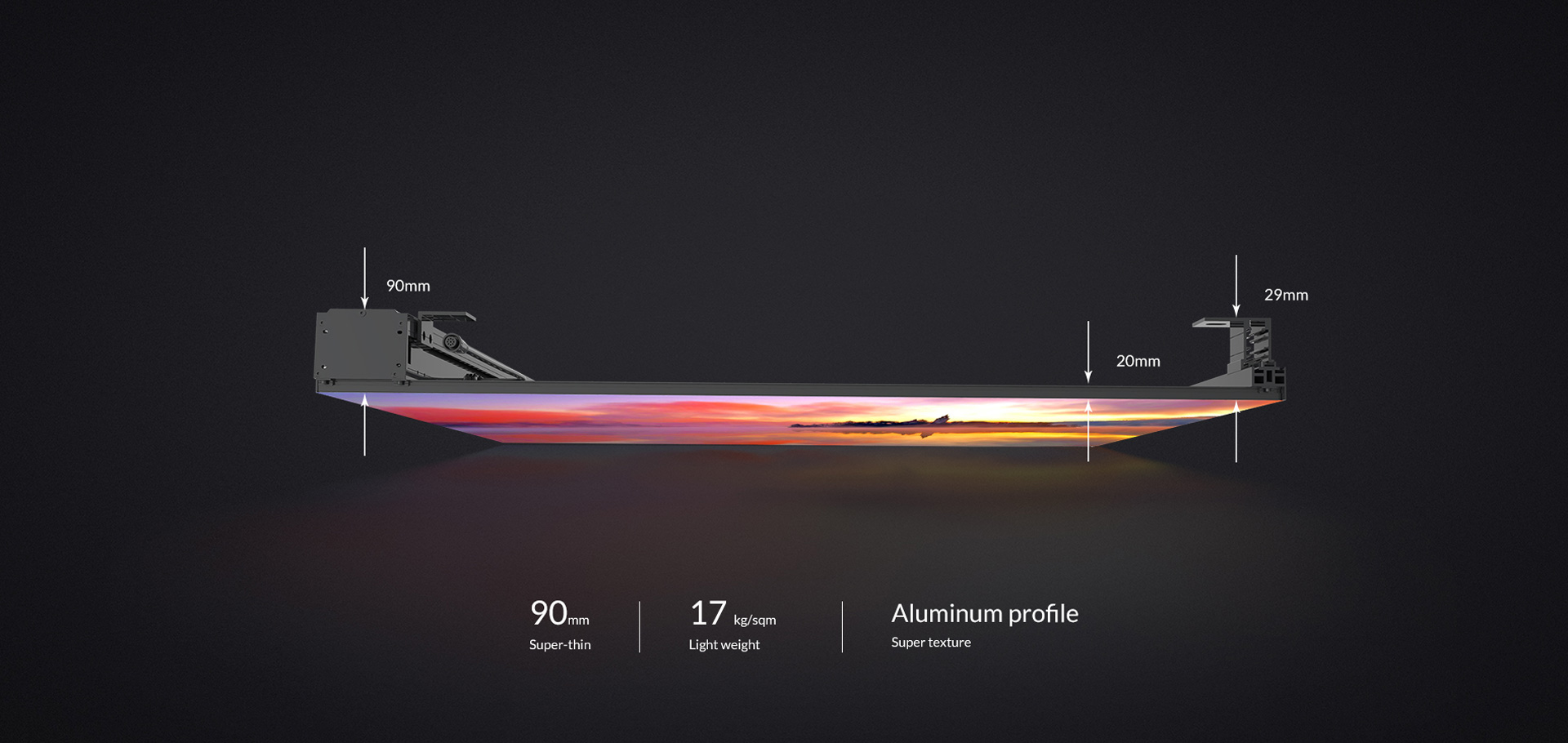

Neat And Picturesque, Super Light And Thin
1/3 of the traditional screen, light weight, saving transportation costs, the installation of steel structure, and installation labor

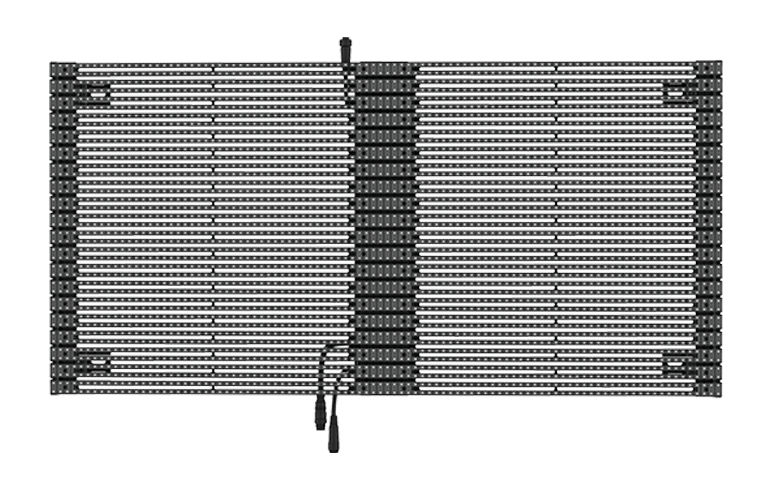

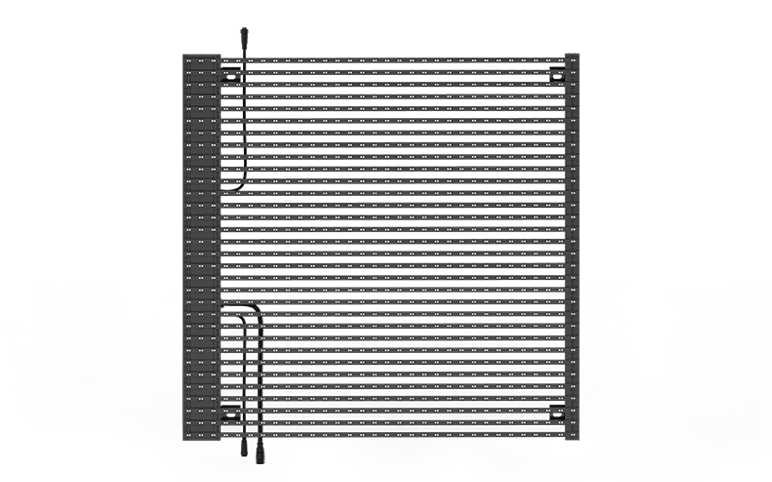

Leyard Vteam Display·LED curtain screen has the characteristics of the strip, hollow, penetrating light, not affecting ventilation and lighting, etc. It is usually used for building exterior walls and landmark buildings. It is suitable for building a super-large outdoor display screen and is the first choice for creating a landmark dynamic display landscape. The curtain screen consists of two series, Zebra SMD series and Zebra DIP series, which are widely used in the setting of building curtain walls, building roofs and outdoor advertisements, etc.
Pixel Pitch：
·Zebra SMD: P6.25/12.5, P10.4/12.5, P12.5, P15.6 ,P20, P25, P31.25
·Zebra DIP: P15.6, P16.66, P15.6/25 ,P20, P25, P31.25, P50
| Zebra Panel Specification | ||||||||||||||||
| Part Number | Zebra SMD-6.25/12.5 | Zebra SMD-10.41/12.5 | Zebra SMD-12.5 | Zebra SMD-15.625 | Zebra SMD-20 | Zebra SMD-25 | Zebra SMD-31.25 | Zebra DIP-15.625 | Zebra DIP-15.625 | Zebra DIP-16.66 | Zebra DIP-25/15.625 | Zebra DIP-20 | Zebra DIP-25 | Zebra DIP-50/25 | Zebra DIP-31.25 | Zebra DIP-50 |
| Pixel Pitch (H/V) | 6.25mm-12.5mm | 10.41mm-12.5mm | 12.5mm | 15.625mm | 20mm | 25mm | 31.25mm | 15.625mm | 15.625mm | 16.66mm | 25-15.625mm | 20mm | 25mm | 50-25mm | 31.25mm | 50mm |
| LED Configuration | 1*SMD2727 | 1*SMD2727 | 1*SMD2727 | 1*SMD2727 | 1*SMD2727 | 2*SMD3535 | 2*SMD3535 | RGB | RGB | RGB | RGB | RGB | RGB | RGB | RGB | 2R2G2B |
| Brightness | 1000～6000cd/m2 | 1000～6000cd/m2 | 1000～6000cd/m2 | 1000～6000cd/m2 | 1000～6000cd/m2 | 1000～7000cd/m2 | 1000～7000cd/m2 | 7000cd/m2 | 13000cd/m2 | 13000cd/m2 | 7000cd/m2 | 7000cd/m2 | 7000cd/m2 | 7000cd/m2 | 7000cd/m2 | 7000cd/m2 |
| Pixel Density | 12800dot/m2 | 7680dot/m2 | 6400dot/m2 | 4096dot/m2 | 2500dot/m2 | 1600dot/m2 | 1024dot/m2 | 4096dot/m2 | 4096dot/m2 | 3600dot/m2 | 2560dot/m2 | 2500dot/m2 | 1600dot/m2 | 800dot/m2 | 1024dot/m2 | 400dot/m2 |
| Transparency | 36% | 36% | 36% | 48% | 60% | 50% | 60% | 30% | 20% | 20% | 50% | 52% | 62% | 75% | 70% | 75% |
| Cabinet Size | 1000*500*76mm | 1000*500*76mm | 1000*500*76mm | 1000*1000*82mm | 1000*1000*82mm | 1000*1000*82mm | 1000*1000*82mm | 1000*1000*98mm | 500*1000*98mm | 500*1000*98mm | 1000*1000*88mm | 1000*1000*98mm | 1000*1000*88mm | 1000*1000*80mm | 1000*1000*88mm | 1000*1000*88mm |
| Cabinet Resolution | 160*40dot | 96*40dot | 80*40dot | 64*64dot | 50*50dot | 40*40dot | 32*32dot | 64*64dot | 32*64dot | 30*60dot | 40*64dot | 50*50dot | 40*40dot | 20*40dot | 32*32dot | 20*20dot |
| Module Size | 1000*25mm | 1000*25mm | 1000*25mm | 1000*23.625mm | 1000*28mm | 1000*12.5mm | 1000*12.5mm | 1000*26.625mm | 1000*60mm | 1000*50mm | 1000*11mm | 1000*32.5mm | 1000*9.5mm | 1000*9.5mm | 1000*9.5mm | 1000*12.5mm |
| Module Resolution | 160*2dot | 96*2dot | 80*2dot | 64*2dot | 50*2dot | 40*1dot | 32*1dot | 64*2dot | 64*4dot | 60*3dot | 1*64dot | 50*2dot | 40*1dot | 1*40dot | 32*1dot | 20*1dot |
| Cabinet Weight | ≤17Kg/m2 | ≤17Kg/m2 | ≤17Kg/m2 | ≤14Kg/m2 | ≤14Kg/m2 | ≤14Kg/m2 | ≤13Kg/m2 | ≤23Kg/m2 | ≤21Kg/m2 | ≤19Kg/m2 | ≤17.5Kg/m2 | ≤19Kg/m2 | ≤14Kg/m2 | ≤11Kg/m2 | ≤16Kg/m2 | ≤10Kg/m2 |
| IP Rating ( front/back) | IP65 | IP65 | ||||||||||||||
