Durable|die-casting Aluminum

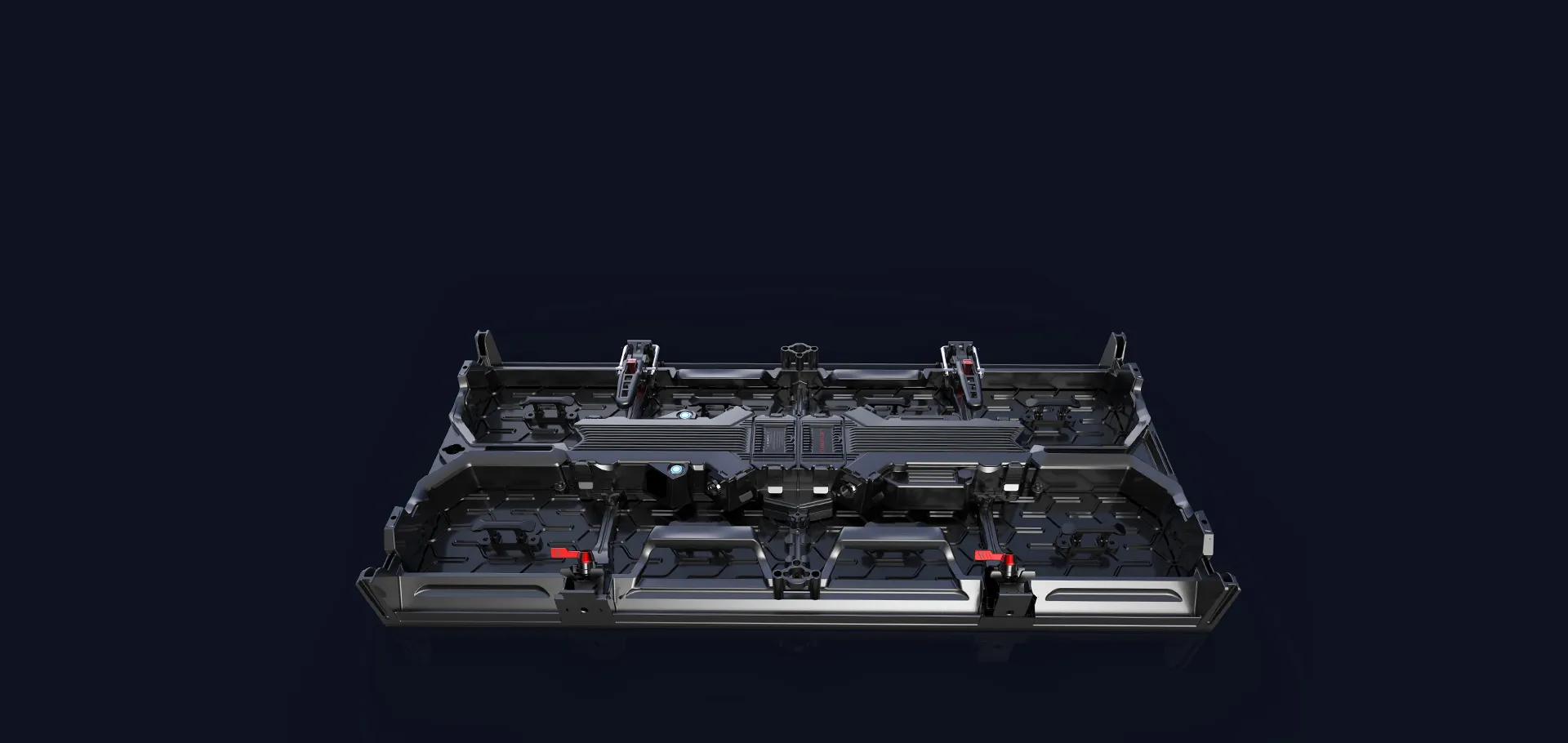

Die-casting aluminum cabinet with higher hardness, anti-extension, not easy deformation

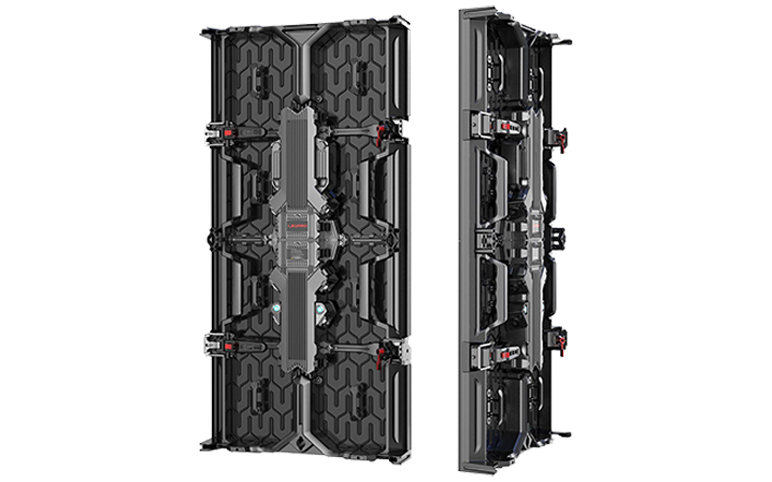

V-Ares is a new third generation of outdoor rental series with strong frame design, module design of cabinets, modules and power box. It adopts color and brightness calibration pixel to pixel. While ensuring the same brightness and color consistency, it keeps perfect picture images, ensures correct self-reading and dual backup function.
Pixel Pitch：
P2.8 / P3.9 / P4.8 / P5.9/7.8
| Part Number | V-Ares-2.8 | V-Ares-3.9 | V-Ares-4.8 | V-Ares-5.9 | V-Ares-7.8 |
| Pixel Pitch | 2.84mm | 3.91mm | 4.81mm | 5.95mm | 7.81mm |
| LED Configuration | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Pixel Density | 123904dot/m2 | 65536dot/m2 | 43264dot/m2 | 28224dot/m2 | 16384dot/m2 |
| Module Size | 250x500X15mm | ||||
| Module Resolution | 88x176dot | 64x128dot | 52x104dot | 42x84dot | 32x64dot |
| Cabinet Size | 500x1000x87mm | ||||
| Cabinet Resolution | 176x352dot | 128x256dot | 104x208dot | 84x168dot | 64x128dot |
| Cabinet Weight | 14.6kg Panel | ||||
| IP Rating ( front/back) | IP65 | ||||
| Environment | OUTDOOR | ||||
| Brightness | 4500-5000CD/m2 | 4500-5000CD/m2 | 4500-5000CD/m2 | 5000-5500CD/m2 | 5000-5500CD/m2 |
