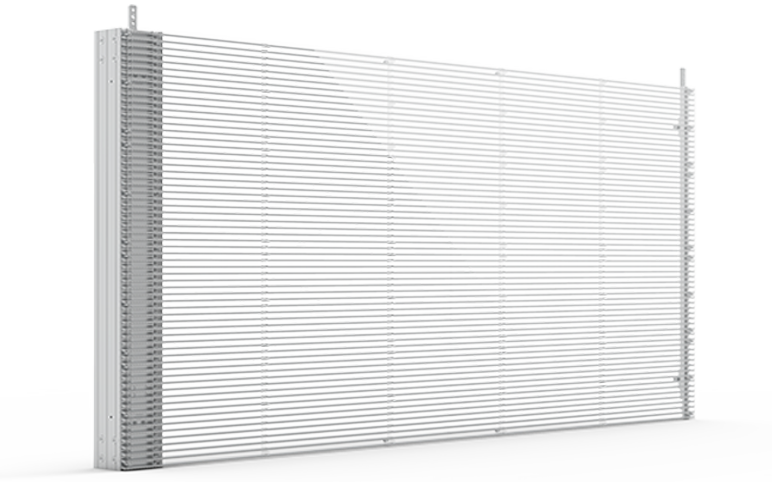

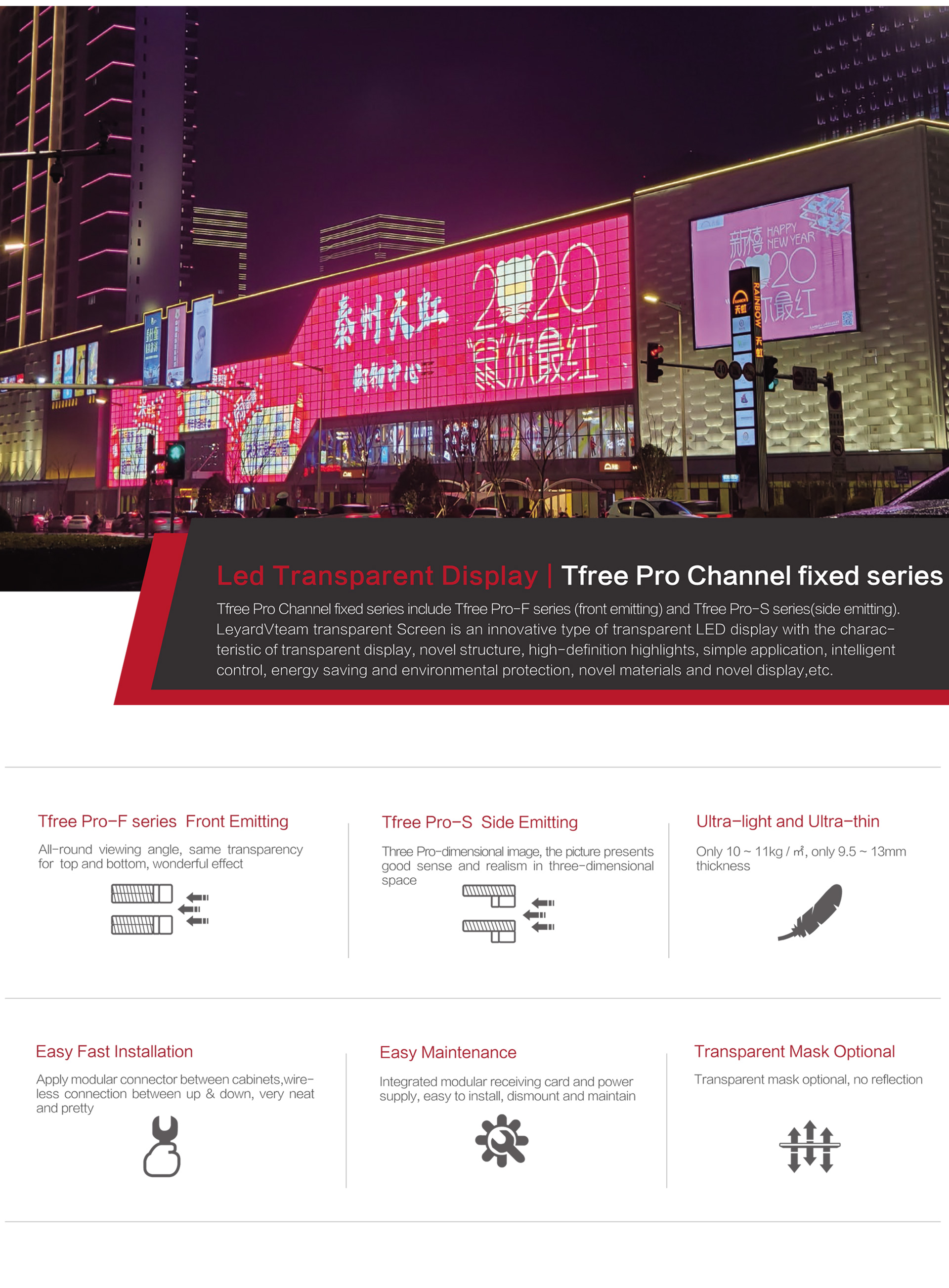

Tfree Pro Channel fixed series include Tfree Pro-F series (front emitting) and Tfree Pro-S series(side emitting). LeyardVteam transparent Screen is an innovative type of transparent LED display with the charac-teristic of transparent display, novel structure, high- definition highlights, simple application, intelligent control, energy saving and environmental protection, novel materials and novel display ,etc.
Cabinet Size
F: 1000 X 500 X 60mm
500 X 500 X 60mm
S: 1000 X 500 x 60mm
| Model | Tfree-Pro-F3.9 | Tfree-Pro-F7.8 | Tfree -Pro-F10.4 | Tfree-Pro- -S2.6(High refresh rate) | Tfree- -Pro-S2.6 （Commoorefreshrate) | Tfree-Pro- S3.9 | Tfree-Pro-S7.8 | Tfree-Pro-S10.4 | Tfree-Pro-S15.6 |
| Pixel Pitch (HNV) | 3.917.8mm | 7.8mm | 10.4mm | 2.6/5. 2mm | 2.6/5. 2mm | 3.9 17.8 mm | 7.8mm | 10.4mm | 15. 6mm |
| LED Configuration | SMD21211 1921 | SMD2121/1921| SMD2121 1 1921 SMD2108 SIDE | SMD2108 SIDE | SMD3510 SIDE | SMD3510 SIDE | SMD3510 SIDE | SMD3510 SIDE | SMD3510 SIDE | SMD3510 SIDE |
| Brightness (CD/m2) | 8001 4000 calmP | 8001 4000 cd/mP | 8001 3000 cd/m I 1000-5500 cad/mF | 1000-5500 cdlmP | 2000-5500 cdlmP | 2000-5500 cdmP | 2000-5500 cdmP | 2000-5000 cdmP | 2000-5000 cdmP |
| Pixel Density(dotm2) | 32768 dotme | 16384 dotm | 9216 dotmP | 73728 dotmr | 73728 dotmr | 32768 dotmP | 16384 dotmr | 9216 dotme | 4096 dotmp |
| Transparency | ≥60% | ≥60% | ≥70% | ≤76% | ≤76% | ≥79% | ≥279% | ≥84% | ≥88% |
